Pad Printing machines

TIC177H 1 COLOUR MANUAL PAD PRINTER

• Configuration
Manually operated, open ink system

• Steel Plate Size
100 x 100 mm

• Machine Dimension
L 367 x W 170 x H 455 mm

• Packing Dimension
L 450 x W 245 x H 490 mm

• Weight
22 kg

TIC163S 1 COLOUR PAD PRINTER

• Configuration
Open ink system

• Steel Plate Size
75 x 100 mm

• Max. Speed
2100 cycles/hour

• Machine Dimension
L 488 x W 310 x H 420 mm

• Packing Dimension
L 640 x W 410 x H 530 mm

• Weight
20 kg

TIC 183 SDL 2 COLOUR PAD PRINTER

• Configuration
Open/closed ink system with shuttle, pitch 127mm

• Steel Plate Size (Open/Closed)
100 x 100 mm / 100 x 250 mm

• Ink Cup Diameter
Ø70 mm, Ø82 mm, Ø90 mm

• Max. Speed
1100 cycles/hour

• Machine Dimension
L 705 x W 441 x H 692 mm

• Packing Dimension
L 840 x W 530 x H 860 mm

• Weight
71 kg

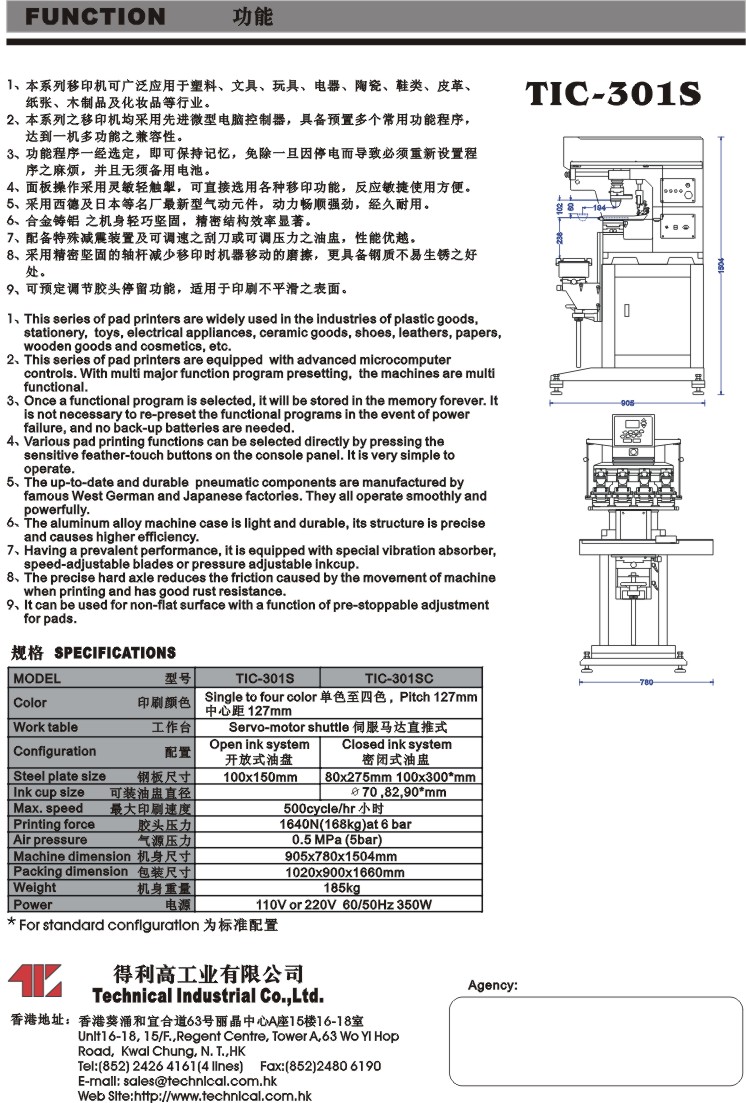

TIC 301 SDL 4 COLOUR PAD PRINTER

• Configuration
Open/closed ink system with servo-motor shuttle, pitch 127mm

• Steel Plate Size (Open/Closed)
100x150mm / 80x275mm

• Ink Cup Diameter
Ø70 mm, Ø82 mm, Ø90 mm

• Max. Speed
500 cycles/hour

• Machine Dimension
L 905 x W 780 x H 1504 mm

• Packing Dimension
L 1020 x W 900 x H 1660 mm

• Weight
185 kg

EUV300 EXPOSURE UNIT

• Max. Exposure Area
250 x 200 mm

• Lamp Power x Amount
8 W x 6

• Machine Dimension
L 370 x W 325 x H 140 mm

• Packing Dimension
L 370 x W 325 x H 140 mm

• Weight
11 kg
