Screen Printing Equipment

Hebbecker XS-LINE

• 8 Stations

• 5 Colours

• 12″ x 8.3″ Large Print Size

• 6 Standard Printing Programmes

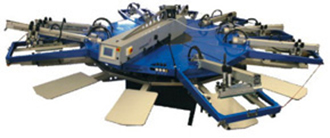

Hebbecker Versatronic Alpha Line S

• 10 – 12 – 16 – 18 – 20 Stations

• Up to 18 Colours

• Maximum Image Area – 500 × 700 mm

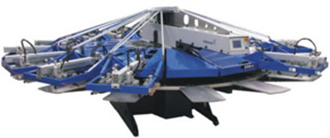

Hebbecker Versatronic Alpha Line S

• 10 – 12 – 16 – 18 – 20 Stations

• Up to 18 Colours

• Maximum Image Area – 500 × 500 mm

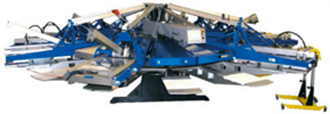

Hebbecker Versatronic Alpha Line – Combi

• 10 – 12 – 16 – 18 – 20 Stations

• Up to 18 Colours

• Maximum Image Area Print – 500 × 500 mm

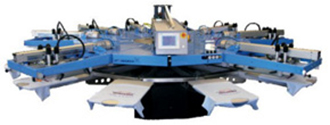

Hebbecker Versatronic Alpha Line – Combi

• 10 – 12 – 16 – 18 – 20 Stations

• Up to 18 Colours

• Maximum Image Area – 500 × 700 mm

• Maximum Image Area Flock – 400 × 500 mm

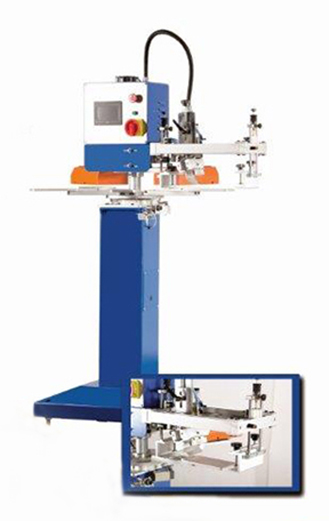

Automatic SR-130F5

High Speed Tagless / Label Screen Printer

Application Range:

Super fast tagless / label printer in textile industry. The screen printing for Tag greatly increases your production speed up to 2 000 units per hour.

Technical Data:

Max Printing Area:  130 x 100 mm

Printing Speed:  2 000 pcs / hr

Power:  3 200 W

Air Consumption:  10 Litre / min 6 bar

Outline Dimension:  1 000 x 920 x 1 450 mm

Weight:  90 kg

Features:

•  PLC control, user friendly interface, clear function display and easy operation.

•  Flat screen printing and dried by infrared ray. Suitable for different types of ink and small area screen frame printing such as T-shirt collar.

•  Five stations driven by stop motor to insure stable and smooth running.

•  Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure.

•  Adopts five stations rotary worktable, one for substrate loading and one for printing, two for drying and one for substrate unloading and five stations working simultaneously with high speed.

•  With one cycle and auto function and switch easy.

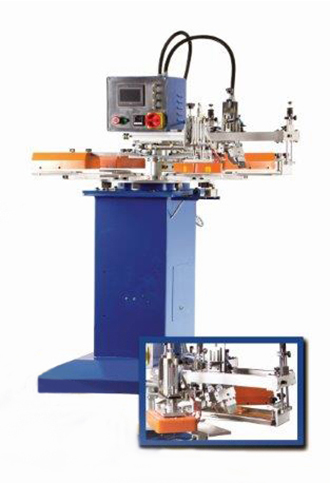

SR-130F8

2 Colour High Speed Tagless / Label Printer

Application Range:

Super fast tagless / label screen printer in textile industry. The screen printing for Tag greatly increases your production speed up to 2 000 units per hour.

Technical Data:

Max Printing Area:  130 x 100 mm

Printing Speed:  2 000 pcs / hr

Power:  4 300 W

Air Consumption:  20 Litre / min 6 bar

Outline Dimension:  1 320 x 1 355 x 1 480 mm

Weight:  204 kg

Features:

• PLC control, user friendly interface, clear function display and easy operation.

• 2 Colour flat screen printing and dried by infrared ray. Suitable for different types of ink and small area screen frame printing such as T-shirt collar.

• Eight stations driven by stepmother to insure stable and smooth running.

• Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure. Screen stencil of the second colour can be finely adjusted front / back / left / right for colour registration.

• Adopts eight stations rotary worktable, one for substrate loading and two for printing, four for drying and one for substrate unloading and eight stations working simultaneously with high speed.
